transparent LED screen



GOB technology application

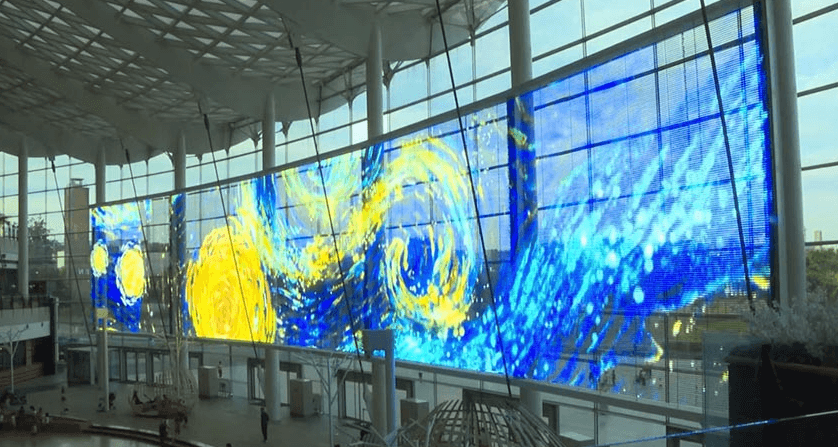

This transparent LED screen uses GOB (Glue On The Board) technology, a new optical thermal conductive nano-fill material that can achieve up to 75% transparency, providing an ideal display solution for applications behind store glass.





Installation and rental options

Fixed transparent LED installation: The screen design supports fixed installation and is suitable for commercial environments with long-term display.
Rental of transparent LEDs: Rental services are also provided to meet the needs of temporary events or short-term displays.



Transparent led display

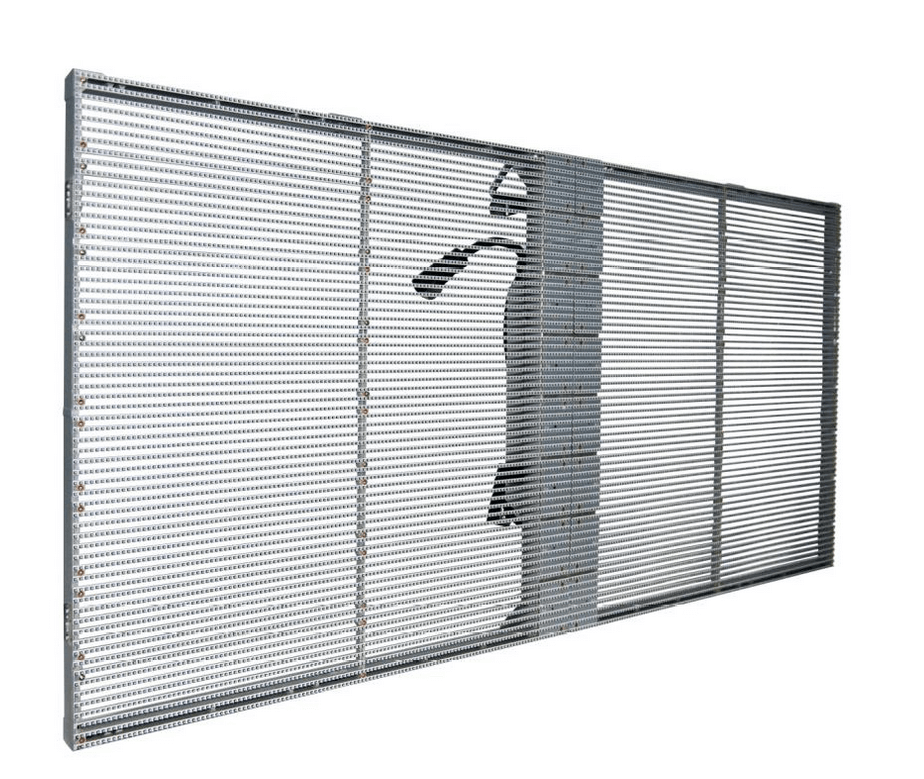

LED transparent panel



High contrast and durable design

High-contrast display: The transparent LED screen provides a high-contrast display effect, ensuring clear images and vivid colors.

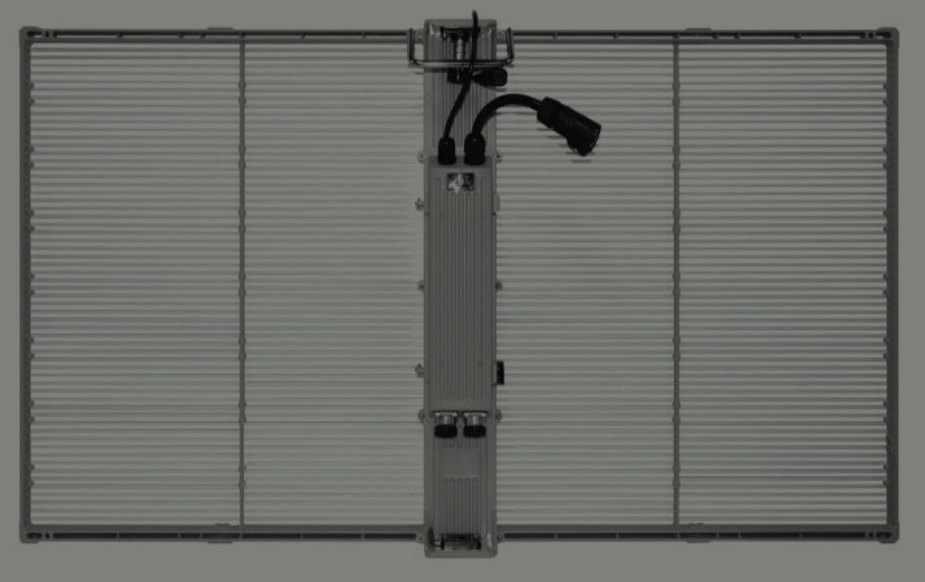

Die-cast panel and aluminum profile: The design of the die-cast panel and aluminum profile enhances the stability and durability of the screen.



transparent LED display   Transparent LED   Transparent LED screen


The transparent LED display uses transparent display technology to achieve the effect of displaying content and background at the same time by optimizing the LED arrangement and transparent materials. LED transparent screen price.



Transparent LED display has the advantages of high transparency, creativity, lightness and convenience. The difference between LED transparent screen and traditional LED screen.



Transparent LED displays can be used in retail and commerce, exhibitions and museums, events and performances, etc. to display product information, promotions, etc., to attract customers' attention.

画素ピッチ (mm) 2.5 3.91 5.2
モデル N2.5/7.8-1000500N3.9/7.8-1000500N5.2/10.4-1000500
LED SMD2020 SMD2020 SMD2020
密度 (dots/sqm) 160000 65410 36982
モジュール画素 (dots) 10000 4088 2311
モジュールの広さ (mm) 500 500 500
モジュールの高さ (mm) 125 125 125
ボックスの広さ (mm) 1000 1000 1000
ボックスの高さ (mm) 500 500 500
ボックスの厚さ 60 60 60
画素 (dots) 80000 32705 18491
重さ (kg) 12.5 12 11.5
材料 aluminium aluminium aluminium
メンテナンス Front rear Front rear Front rear
防水レベル IP65 IP65 IP65
最大の輝度 (cd/sqm) 1500 1500 1500
色の温度 (k) 6500 6500 6500
視角 140/140 140/140 140/140
コントラスト比 5000:1 5000:1 5000:1
最大のパーワー (w) 400 400 400
平均のパーワー (w) 150 150 150
電圧のタイプ AC AC AC
電圧 (v) 110-220 110-220 110-220
駆動方式 1/8 1/4 1/4
スクリーンFPS (hz) 60 60 60
